3 Slots M Lok Aluminum Rail Section

admin

Magpul M-LOK Aluminum Rail Section, 3 Slots SKU: MAGPUL-MAG580 Designed for use with all M-LOK compatible Hand Guards and Forends, M-LOK Aluminum Rail Sections allow the attachment of various 1913 Picatinny spec rail-mounted accessories such as lights, vertical grips, etc. Machined from milspec-anodized aluminum, M-LOK Rail Sections also. Designed for use with all M-LOK compatible hand guards and forends, our 3-slot M-LOK Polymer Rail Sections provide a cost effective method of attaching various 1913 Picatinny-Spec rail-mounted accessories such as lights, vertical grips, etc.

BCM 3 inch Picatinny Rail Section, Aluminum (M-LOK® Compatible.). Rail section is made of Hard Anodized Aircraft Aluminum Alloy. Made to the Mil-Standard 1913 Picatinny Arsenal Specifications. Features a Snag resistant design, while retaining Mil-Standards. M-LOK® Compatible. The Magpul M-LOK Aluminum Rail Section is designed to be used with all M-LOK compatible forends and handguards wherever you might need to add an M1913 Picatinny rail section! Machined from Mil-Spec anodized aluminum, the M-LOK rail sections have beveled ends to reduce snagging and eliminate sharp corners and edges. All hardware necessary for attachment directly to M-LOK Slots on either aluminum or polymer hand guards and forends is included. 3 Slots, max overall length of 1.6″.

Description

The Kinect™ by KDG for M-LOK™ is a revolutionary QD mounting system that will change the way we attach accessories to our modular weapons platforms. Much like the Sidelok™ for Picatinny attachment, Kinect™ insures proper and easy installation, eliminating common variables that would cause issues.(ie: over tightening) Although revolutionary, Kinect™ is quite simple in its operation. There are two spring-loaded wedges in the base of the Kinect™ mounting point. When you press the accessory or rail section down in the M-LOK™ slot, two tiny deployment triggers get pressed against the rail firing the wedges into place. There is nothing more frustrating that fiddling with an allen wrench (if you can find it) to get your accessories on an off your weapon with traditional modular rail sections. This changes the whole dynamic of the M-LOK™ system and really makes every accessory truly removable with the ability to mount it in a second when needed.

M Lok Picatinny Rail Sections

SPECS:

Length: 1.68″ (42.8mm) Use with one M-LOK section

Aluminum

Width: .82″ (20.9mm)

Height (Over M-LOK): .41″ (10.5mm)

3 Slots M Lok Aluminum Rail Sectional

Finish: Black Anodized

Compatibility: Compatible with any M-LOK rail system.

Weight: 0.8oz

NOTICE TO ALL CUSTOMERS:

**NOT RECOMMENDED FOR USE AS A BIPOD ATTACHMENT POINT ON CALIBERS LARGER THAN 5.56 and certain bolt action firearms. Due to loading the Bipod, the QD Kinect system can disengage from recoil.***

M lok rail covers

***Please Note: The Kinect system was designed and manufactured to the original specifications set by Magpul Industries for a rail thickness of .080″ and .125″ thick. The current specifications for M-LOK are a thickness of .080 to .150″ as many of the polymer M-LOK products on the market have to be thicker to support glass filled polymer rail systems. Therefore we do not suggest, nor can guarantee our KINECT product will work on these polymer products. Polymer rails can be modified to work, but our Kinect system was intended for use on precision machined aluminum rails within the specification of .080″ to .125″ overall thickness. With the variable tolerences that polymer parts are capable of, it is not suggested you buy Kinect QD M-LOK mounts unless you are sure the rail is within the specification, or you are able to modify your rail to fit the Kinect system. Measure the thickness of your polymer rails before ordering. If you have purchased a Kinect piece and it will not work with the poylmer or other thicker after market M-LOK accessories, we do offer a 30 day return policy for store credit on purchases. We will make sure you get taken care of!

***The Kinect Pieces are made fully assembled from the factory and not intended to be disassembled by the end user. Because these are mechanical items, all kinect pieces are tested multiple times at the factory to insure they work properly and are securely mounted onto M-LOK rails. So if you see marks of use on your new Kinect piece, do not worry, that is the factory test marks. Since the M-LOK system has varying tolerances, each Kinect piece may attached differently to each different manufacturers rail. (ie: thicker rails, thinner rails, rails of different materials) Kinect was designed to work with the full range of M-LOK accessories on the market. If you have any issues with your Kinect piece, contact us right away so we can fix the issue for you! Info@kineticdg.com

M Lok Aluminum Rail Section

$17.95

3 Slots M Lok Aluminum Rail Sections

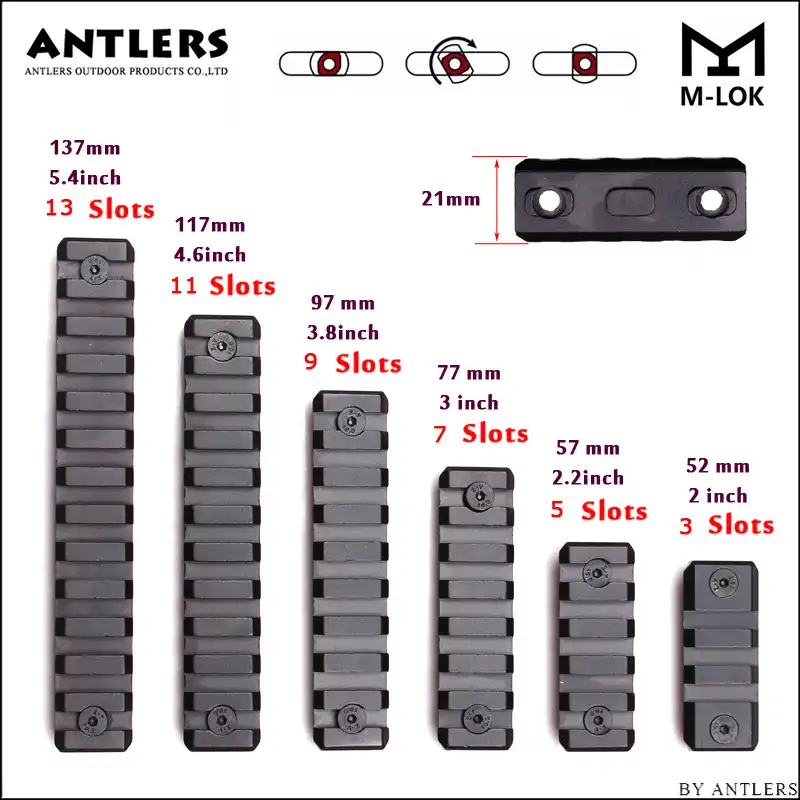

Designed for use with all M-LOK compatible Hand Guards and Forends, M-LOK Aluminum Rail Sections allow the attachment of various 1913 Picatinny spec rail-mounted accessories such as lights, vertical grips, etc. Machined from milspec-anodized aluminum, M-LOK Rail Sections also feature beveled ends to reduce snagging and eliminate sharp corners and edges. All hardware necessary for attachment directly to M-LOK Slots on either aluminum or polymer hand guards and forends is included. 3 Slots, max overall length of 1.6'.
Made in U.S.A.

Magpul M Lok Rail Section
